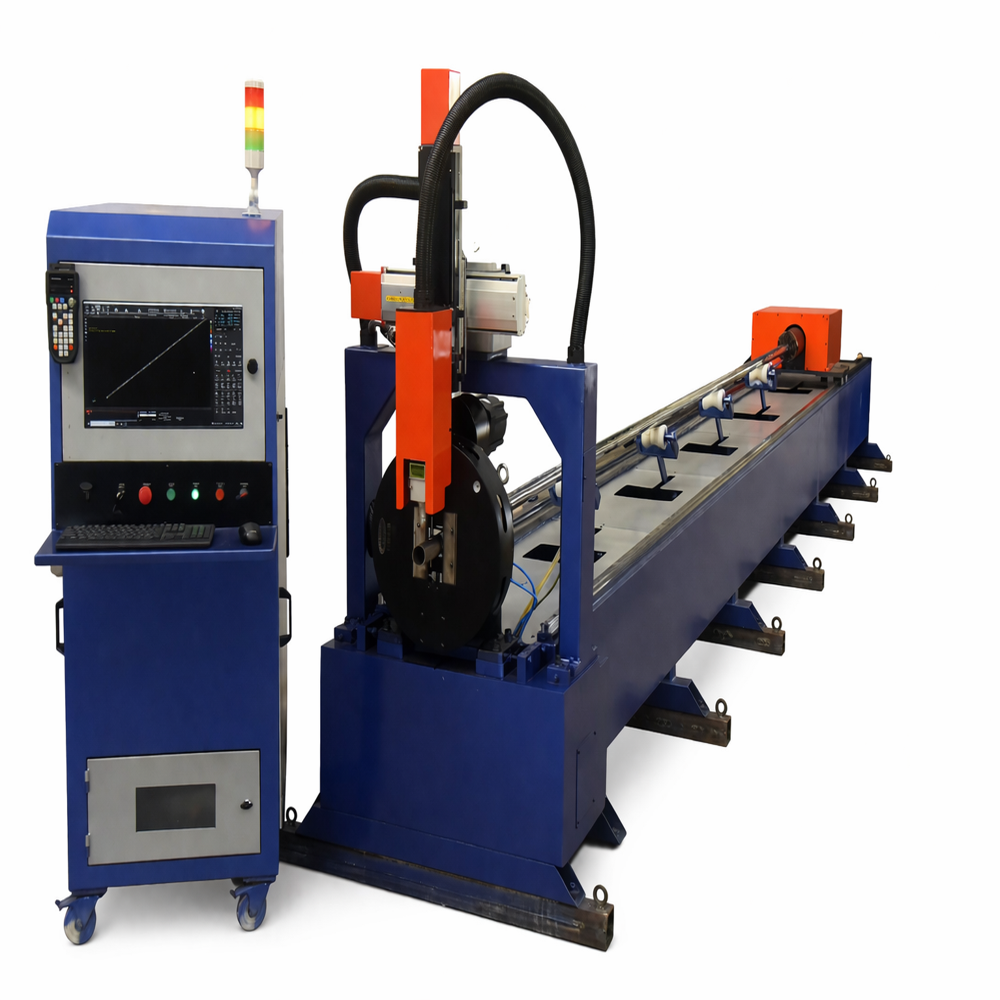

JE100L Multifunctional Laser Pipe/Tube Cutting Machine
2550000.0 INR/Piece
Product Details:
- Product Type Laser Pipe Cutting Machine
- General Use CUTTING
- Material Steel
- Type Metal Cutting Machine
- Computerized Yes
- Automatic Yes
- Control System PLC Control
- Click to View more
X
JE100L Multifunctional Laser Pipe/Tube Cutting Machine Price And Quantity
- 1 Piece
- 2550000.0 INR/Piece
JE100L Multifunctional Laser Pipe/Tube Cutting Machine Product Specifications
- Electric
- PLC Control
- Laser Pipe Cutting Machine
- Low Noise, High Efficiency
- Full Automatic
- NC Studio
- Steel
- Yes
- CUTTING
- Yes
- 380-415 V Three Phase Volt (v)
- 0.1mm cut margin loss
- Blue
- Metal Cutting Machine
JE100L Multifunctional Laser Pipe/Tube Cutting Machine Trade Information
- 10 Piece Per Month
- 1 Week
Product Description
Price to be vary as per the job application- Working Length : 6 meter
- Rotary Diameter : 10 to 100 mm round
Max square : 10x10 to 80x80 mm - Max square : 10x10 to 80x80 mm
- Laser Output Power : 1500W or 2000W or 3000W
- Laser Type : Max / GW
- Laser Wave Length : 1080nm
- Cutting Head : Raytools Autofocus Head
- Z Axis Stroke : 200 mm
- Chuck : Dual Pneumatic chuck
- Servo Motor : 5 KW
- Position Accuracy : < 0.3 mm
- Controller and Software : NC Studio or Aditech
- L M Guide : THK Japan Make
- Front Support Tube : Flap type 1000 mm
- Minimum Line Width : < 0.12mm
- Minimum End piece : 70 mm
- Cooling System : Water Cooling
- Driving System : AC Servo Motor and Drivers
- Working Voltage : 380-415 V Three Phase
- Total Power Consumed : 20 KW
- Transmission : Z axis with imported ball screw, X Y axis is imported square rail.
-
Advanced Precision Cutting
The JE100L Laser Pipe Cutting Machine offers ultra-precise cutting with just a 0.1mm margin loss, ideal for steel fabrication tasks demanding exceptional accuracy. Its fully automatic operation, backed by a sophisticated PLC control system, enables users to handle high-volume projects with reduced labor intervention and lowered error rates.
Enhanced Efficiency and Low Noise
With its high efficiency and low operational noise, the JE100L is designed for industrial environments where productivity and comfort are paramount. The electric drive and optimized mechanics maintain a quiet workspace and facilitate smooth, rapid cutting cycles for improved overall throughput.
Intuitive Computerized Operation
Integrated with NC Studio software, the JE100L supports straightforward programming and remote control, making the cutting process seamless for operators. The user-friendly interface and reliable computerized system provide consistent, repeatable results with minimal training required.
FAQ's of JE100L Multifunctional Laser Pipe Cutting Machine:
Q: How does the JE100L Laser Pipe Cutting Machine achieve high cutting precision?
A: The JE100L uses advanced laser technology combined with a PLC control system to ensure highly accurate cuts with a maximum margin loss of only 0.1mm, making it well-suited for detailed metal fabrication work.Q: What types of materials can the JE100L cut?
A: This machine is specifically designed for cutting steel pipes but can also handle other metallic materials depending on the application requirements, offering versatility for various industrial uses.Q: When is it best to use the JE100L for pipe cutting?
A: The JE100L is ideal for both large-scale and precision-demanding projects where automation, accuracy, and efficiency are essential, especially in manufacturing settings that require consistent quality.Q: Where can the JE100L Multifunctional Laser Pipe Cutting Machine be installed?
A: It is intended for industrial settings with a 380-415 V three-phase electrical supply, such as factories, manufacturing facilities, and fabrication workshops throughout India.Q: What is the process for operating the JE100L Laser Pipe Cutting Machine?
A: Operation involves setting up your cutting requirements on the NC Studio software, loading the steel pipe, and initiating the automated cycle via the PLC control system. The electric drive and precision mechanics handle the cutting efficiently and accurately.Q: How does using the JE100L benefit manufacturers and suppliers?
A: Manufacturers benefit from faster production speeds, reduced labor costs, consistent high-quality cuts, and the ability to meet strict precision requirements, all while maintaining a quieter workspace.Tell us about your requirement
