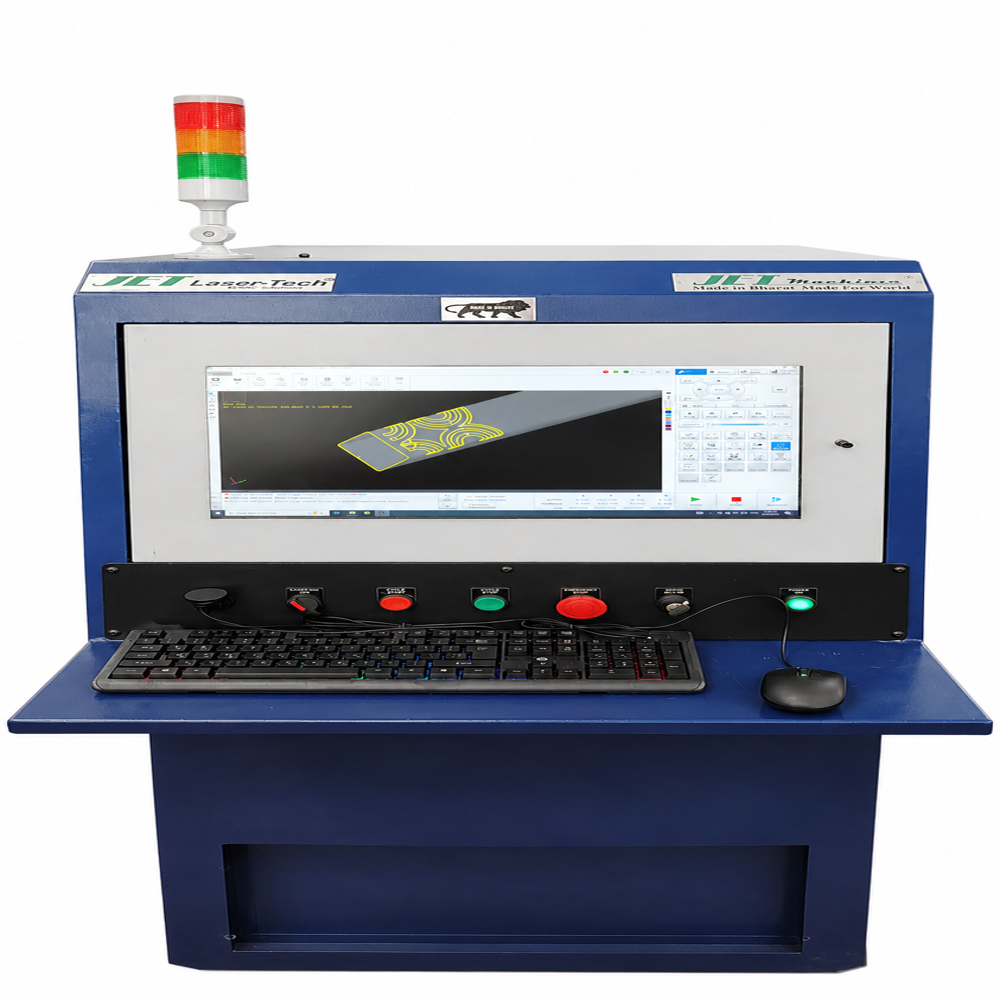

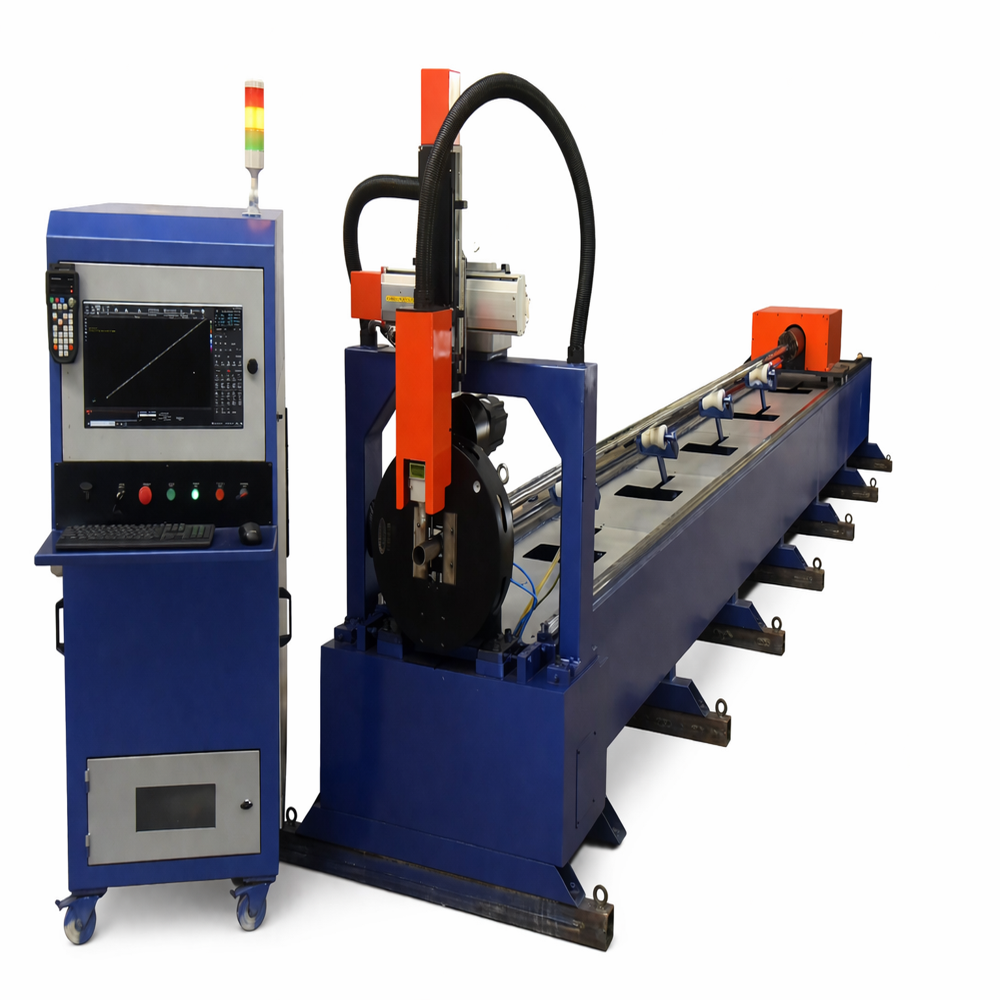

JE100L Multifunctional Laser Pipe Cutting Machine

JE100L Multifunctional Laser Pipe Cutting Machine

Name: JE100L Laser Pipe Cutting Machine
Brand: JANAK ENTERPRISES
Price: 2550000.0 INR
Availability: InStock

2550000.0 INR/Piece

Get a Price/Quote

Product Details:

Product Type Laser Pipe Cutting Machine
General Use CUTTING
Material Steel
Type Metal Cutting Machine
Computerized Yes
Automatic Yes
Control System PLC Control
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

JE100L Multifunctional Laser Pipe Cutting Machine Price And Quantity

Price 2550000.0 INR/Piece
Minimum Order Quantity 1 Piece

JE100L Multifunctional Laser Pipe Cutting Machine Product Specifications

Software Detail NC Studio
Control System PLC Control
Color Blue
Feature Low Noise, High Efficiency
Mechanical Precision 0.1mm cut margin loss
Type Metal Cutting Machine
Product Type Laser Pipe Cutting Machine
General Use CUTTING
Drive Type Electric
Automatic Yes
Computerized Yes
Cutting Function Full Automatic
Voltage 380-415 V Three Phase Volt (v)
Material Steel

JE100L Multifunctional Laser Pipe Cutting Machine Trade Information

Supply Ability 10 Piece Per Month
Delivery Time 1 Week

Product Description

Price to be vary as per the job application

Working Length : 6 meter
Rotary Diameter : 10 to 100 mm round
Max square : 10x10 to 80x80 mm
Max square : 10x10 to 80x80 mm
Laser Output Power : 1500W or 2000W or 3000W
Laser Type : Max / GW
Laser Wave Length : 1080nm
Cutting Head : Raytools Autofocus Head
Z Axis Stroke : 200 mm
Chuck : Dual Pneumatic chuck
Servo Motor : 5 KW
Position Accuracy : < 0.3 mm
Controller and Software : NC Studio or Aditech
L M Guide : THK Japan Make
Front Support Tube : Flap type 1000 mm
Minimum Line Width : < 0.12mm
Minimum End piece : 70 mm
Cooling System : Water Cooling
Driving System : AC Servo Motor and Drivers
Working Voltage : 380-415 V Three Phase
Total Power Consumed : 20 KW

Transmission : Z axis with imported ball screw, X Y axis is imported square rail.
