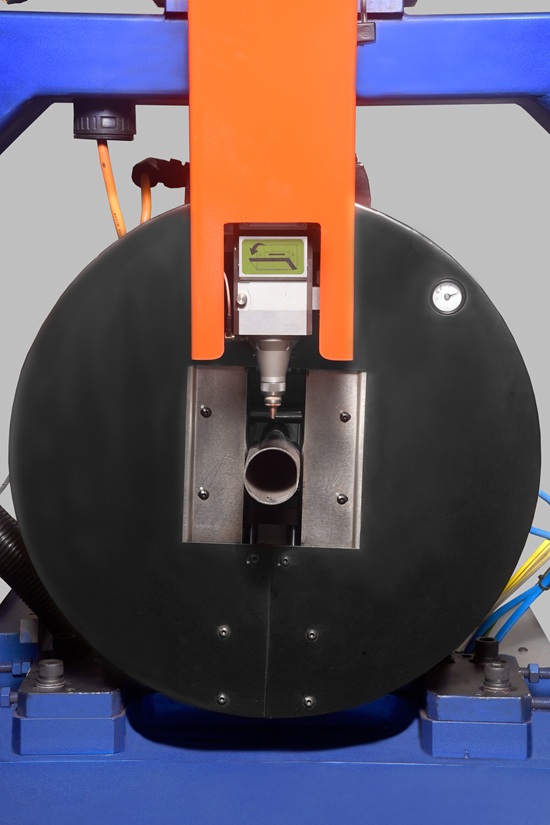

JE100L Laser Pipe Cutting Machine

Working Length                                     : 6 meter

Rotary Diameter                                     : 10 to 100 mm round
Max square                                             : 10x10 to 80x80 mm

Laser Output Power                                : 1500W or 2000W or 3000W

Laser Type                                              : Max / GW

Laser Wave Length                                 : 1080nm

Max cutting capacity                               :

For 1500W: 2.8 mm for round and 2.0 mm for square and rectangle (with compressed Air) or

For 2000W: 3.8 mm for round and 3.0 mm for square and rectangle (with compressed Air) or

For 3000W: 4.8 mm for round and 4.0 mm for square and rectangle (with compressed Air)

Cutting Head                                          : Raytools manual focas cutting head

Z Axis Stroke                                          : 200 mm

Chuck                                                    : Dual Pneumatic chuck

Servo Motor                                            : 5 KW

Position Accuracy                                   : < 0.3 mm

Controller and Software                            : NC Studio or Aditech

L M Guide                                              : THK Japan Make

Front Support Tube                                 : Flap type 1000 mm

             Minimum Line Width                                  : < 0.12mm

             Minimum End piece                                     : 70 mm

             Cooling System                                            : Water Cooling

             Driving System                                             : AC Servo Motor and Drivers

             Transmission                                                : Z axis with imported ball screw, X Y axis is imported square rail.

             Working Voltage                                          : 380-415 V Three Phase

             Total Power Consumed                                : 20 KW
